Double Wire Chain Link Fencing Machine Manufacturer in India

The Chetak 2026 — India's high-output double wire chain link fencing machine engineered for manufacturers who need maximum production from a single shift. Two servo-driven weaving heads. One operator. Twice the output.

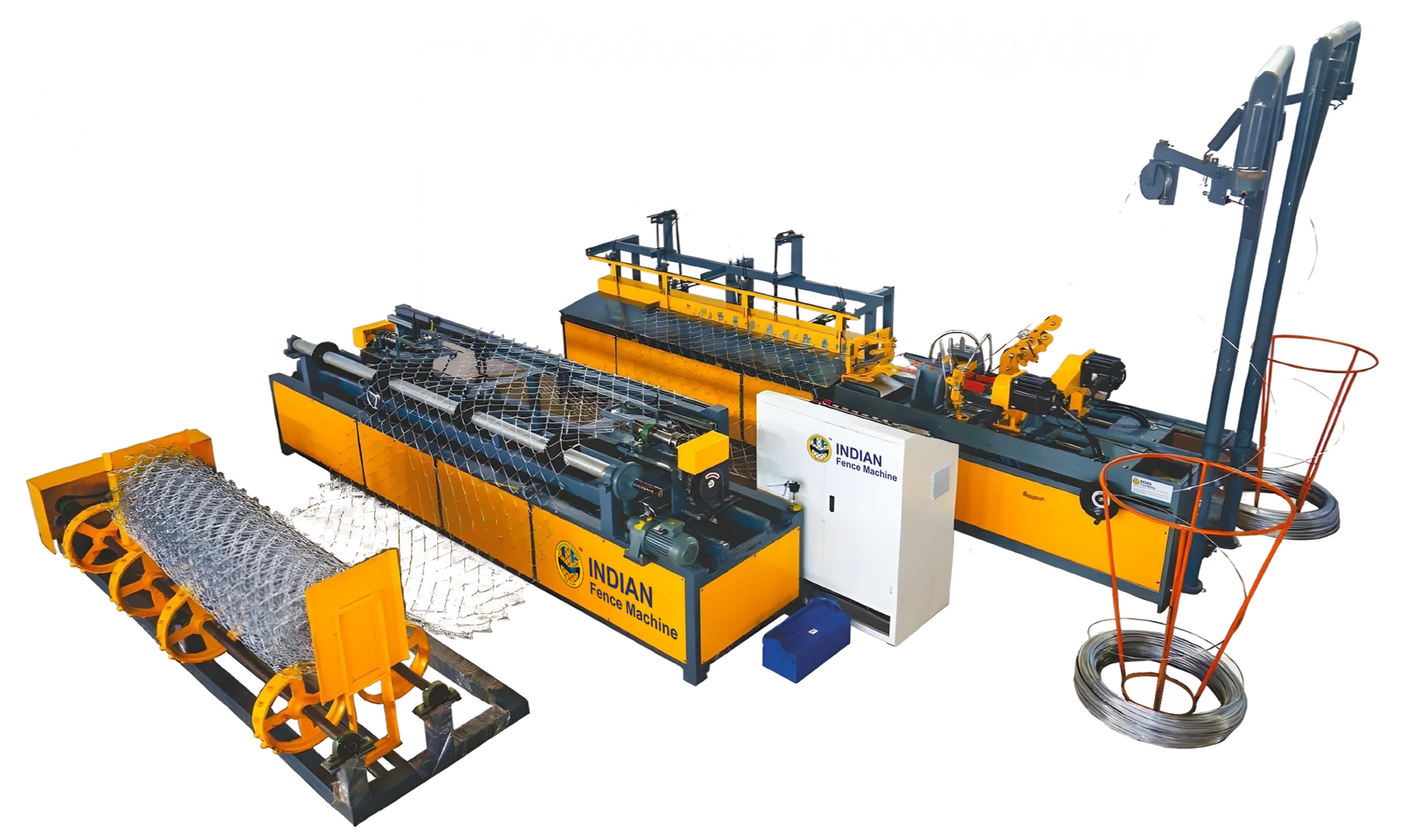

Double wire chain link fencing machine Chetak 2026 — Indian Fence Machine manufacturer Udaipur India

Product Introduction

Chetak 2026 — Double Wire Chain Link Fencing Machine

The Chetak 2026 is Indian Fence Machine's flagship double wire chain link fencing machine — built for fence manufacturers, wire processors, and fencing contractors who need to double their production capacity without doubling their factory space or labour cost.

Unlike a standard single-wire chain link fencing machine, the Chetak 2026 runs two wire feeds simultaneously through twin Delta servo motors, producing chain link mesh at nearly twice the speed — while maintaining the same diamond-pattern accuracy, consistent mesh openings, and clean edge finish that buyers expect from premium fencing.

The machine is built around a dual 6 HP Delta servo system with oil-and-grease-free reducers — no belt drives, no clutch wires, no wet lubrication. This means lower maintenance overhead, fewer scheduled service stops, and cleaner shop-floor operation. The electrical cabinet uses Delta components throughout — SMPS, HMI, VFD, PLC, and drive — alongside Schneider electricals and Lapp wiring, ensuring every electrical component is globally sourced and easily replaceable anywhere in India.

At 13–14 HP running load and a footprint of just 24 × 20 ft, the Chetak 2026 is one of the most space-efficient double wire chain link fencing machines available from an Indian manufacturer. It ships with 8 interchangeable dies covering the full mesh size range, a complete tool kit, and all consumable spares — production-ready from day one.

Every Chetak 2026 double wire chain link fencing machine is manufactured at our ISO 9001:2015 certified facility in Udaipur, Rajasthan, and delivered with on-site installation and operator training included.

What Makes the Chetak 2026 Different

Engineered for high production and low maintenance

2X Production Output — Same Space, Same Operator

The Chetak 2026 simultaneously feeds and weaves two wires through independent servo-driven heads, nearly doubling your chain link mesh output compared to a single-wire machine — without requiring additional factory space, additional power infrastructure, or an extra operator on the floor.

Twin 6 HP Delta Servo Motors — Zero Belt, Zero Clutch Wire

Two independent 6 HP Delta servo motors with oil-and-grease-free gear reducers drive the Chetak 2026's weaving heads. There is no belt drive and no clutch wire in the power train — eliminating the two most common failure points on older machine designs and reducing unplanned downtime to near zero.

Fully Remote Controlled — Single Operator Workflow

The entire machine — feed speed, mesh length, auto-roll, and cutting — is managed through a full remote control system linked to the Delta PLC and HMI touchscreen. One trained operator manages complete production without walking the length of the machine.

500 kg Wire Payoff Stand — Fewer Reel Changes

The heavy-duty dual-spool payoff stand holds up to 500 kg of wire, reducing the number of reel changeovers per shift and keeping the machine running longer between interruptions. Compatible with GI wire, PVC-coated wire, and standard commercial quality Raipur wire.

Twist / Knuckle Locking — Versatile Edge Finish

The Chetak 2026 supports both twist and knuckle edge finishes — or a combination of both — through its New Model locking mechanism. This makes your output compatible with a wider range of customer specifications and project standards without any machine changeover.

Durable Powder-Coat Finish — Built for the Shop Floor

The machine frame is finished in a multi-layer powder coat rated for anti-corrosion, anti-scratch, fade resistance, and chip resistance — designed to maintain its appearance and integrity through years of continuous industrial use in dusty, humid, or high-temperature factory environments.

Double Wire Chain Link Fencing Machine — Technical Specifications

Detailed components and features of the machine

Specification	Chetak 2026 Details
Model	Chetak 2026
Space Required	24 × 20 ft
Running Load	13–14 HP
Servo System	Dual Delta Servo — 6 HP × 2 with reducer
Gearbox	Oil/grease-free reducer (maintenance-free)
Clutch / Belt	None (belt-free, clutch-free design)
Electric Panel	Delta & Schneider Electrics
PLC	Delta PLC
HMI / Drive / VFD	Delta Company
SMPS	Delta Company
Wiring	Lapp Company
Wire Payoff Stand	500 kg capacity (dual spool)
Weaving Machine	Heavy-duty drive motor + gear
Locking Type	New Model — Twist / Knuckle (selectable)
Auto Roll	Yes — motor-driven
Control Type	Fully remote control
Wire Types Supported	GI, PVC-coated, commercial/Raipur wire
Wire Diameter Range	2.0 mm – 4.0 mm
Mesh Size Range	35 mm – 110 mm
Production Capacity	Up to 300–350 kg/hr (wire gauge dependent)
Moulds Included	8 dies (standard mesh sizes)
Coating	Powder coat — anti-corrosion, anti-scratch, fade & chip-resistant
Certification	ISO 9001:2015

Complete Package — Everything Included at Delivery

Every Chetak 2026 double wire chain link fencing machine ships as a complete, production-ready package. No hidden extras, no separate purchases required.

8 Interchangeable Dies (Moulds)

Covering standard mesh sizes from 35 mm to 110 mm, allowing you to switch mesh size for different customer orders without purchasing additional tooling.

Professional Tool Kit

All tools required for installation, adjustment, and routine maintenance are included.

Extra Relay

A standby relay for the electrical panel, eliminating procurement delays if a relay needs replacement.

SMPS Sensors & SSR

Onboard spares for the solid-state relay and sensor array.

Oil Dispenser

For initial lubrication of mechanical components during installation.

Protective Gloves

Operator safety gear for wire-handling during setup and changeovers.

Wheels & Extra Spares

Additional wear components to keep on the shelf, reducing downtime from routine part replacement.

Compressor Optional Add-on

Available on request for sites that do not have existing compressed air supply.

Advanced Technology

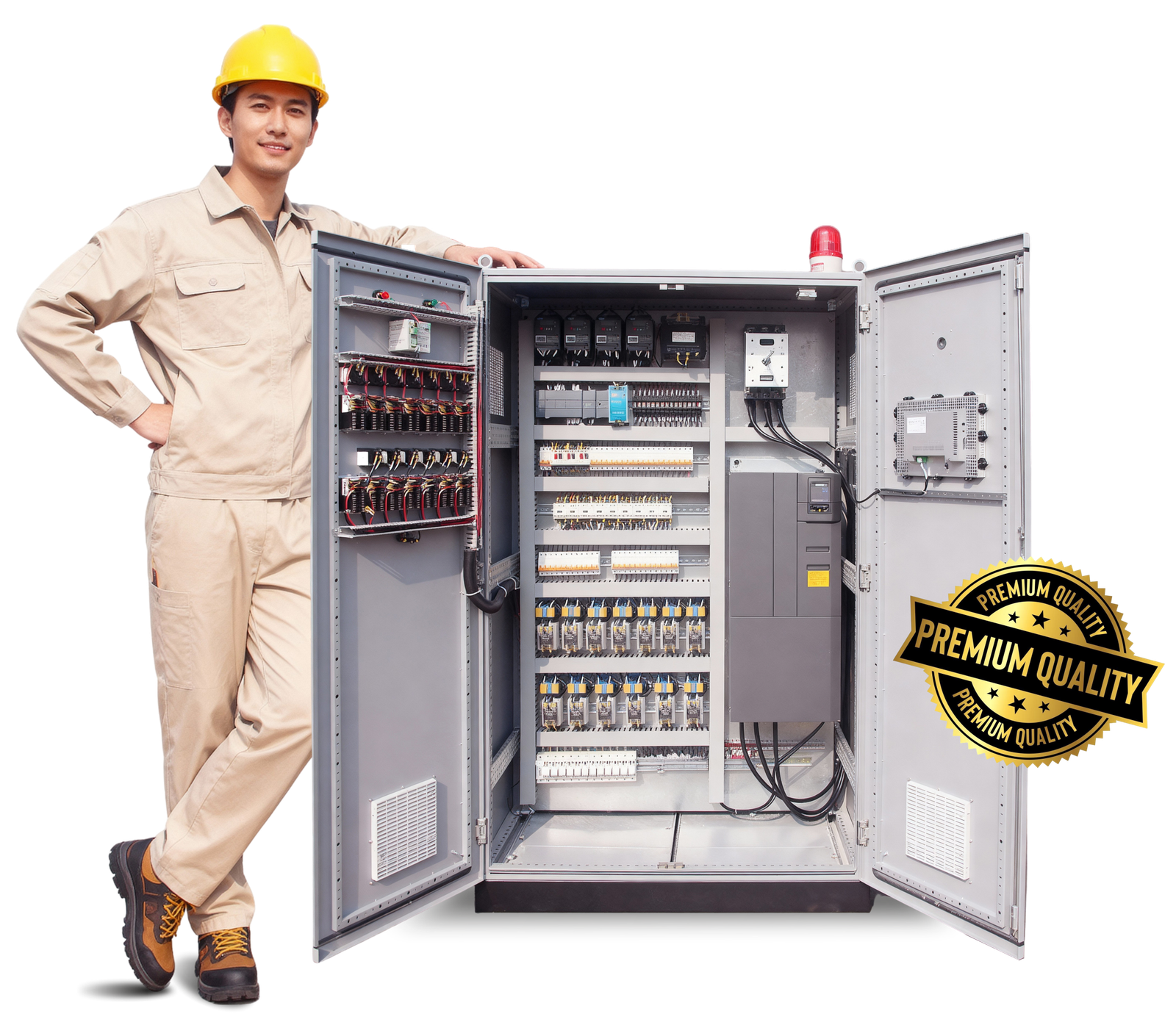

Control Panel

High Quality Accessories

◆SMPS Delta Company

◆Drive Delta Company

◆HMI Delta Company

◆VFD Delta Company

◆Wire Lapp Company

◆Others Parts Schneider Company

◆PLC Delta Company

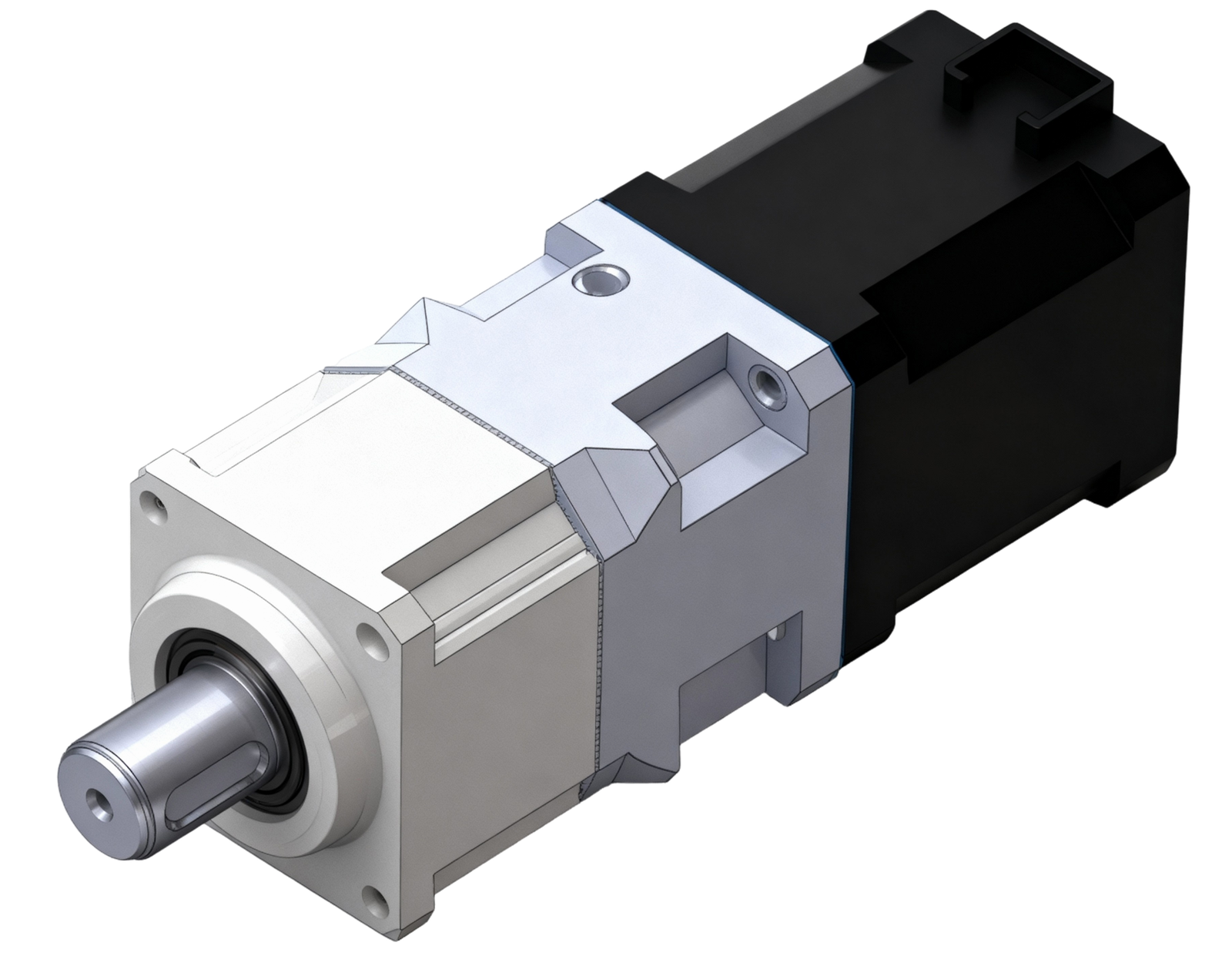

6 HP Delta servo motor with oil-free reducer — Chetak 2026 double wire chain link fencing machine

6 HP Delta Motor

Reducer (Oil/grease free gearbox)

Is the Chetak 2026 Double Wire Machine Right for You?

The Chetak 2026 is not an entry-level machine — it is built for operations that are serious about production output. Here is who gets the most value from it.

✔ Established Fence Manufacturers Scaling Up

If you already operate a single-wire chain link fencing machine and your order volume is outpacing your production capacity, the Chetak 2026 is the natural next step. It roughly doubles your output in the same factory footprint — without the cost of a second building or a second full workforce.

✔ Wire Rod Processors Adding Value

Wire mills and wire drawing units that want to convert raw wire into finished chain link mesh in-house rather than selling through intermediaries. The Chetak 2026 handles the full wire-to-mesh conversion in a single pass, adding significant margin per tonne of wire processed.

✔ Large-Scale Project Contractors

Infrastructure contractors, solar farm fencing contractors, and defence perimeter fencing contractors who run continuous high-volume fence production on fixed-duration project timelines — where machine output directly determines project delivery speed.

✔ Export-Oriented Fence Manufacturers

Manufacturers supplying chain link mesh to the Middle East, Africa, or South Asia who need consistent, high-output production to meet export order volumes and quality certification requirements.

Double Wire Chain Link Fencing Machine Manufacturer in India — Indian Fence Machine

Indian Fence Machine is an ISO 9001:2015 certified manufacturer of automated fencing machinery, headquartered in Udaipur, Rajasthan. We design and build every machine at our own facility — giving us full control over component quality, build standards, and pre-delivery testing.

The Chetak 2026 double wire chain link fencing machine is manufactured using globally trusted electrical components — Delta servo systems and PLC, Schneider electricals, and Lapp wiring — and assembled under stringent quality checks before dispatch.

We supply to fence manufacturers, wire processors, and fencing contractors across all Indian states, with dedicated service teams in Maharashtra, Tamil Nadu, Jharkhand, and Rajasthan. Every machine comes with on-site installation, operator training, and 24×7 after-sales support.

When you buy directly from Indian Fence Machine, there is no dealer, no agent, and no markup — you get the best possible factory price with full manufacturer backing.

Get a Quote — Chetak 2026 Double Wire Chain Link Fencing Machine

Share your wire type, mesh size requirement, and production target — our team will confirm the right configuration, current factory pricing, and installation timeline. We typically respond within a few hours on working days.

Sales & Support

+91-77426 54628 +91-95880 12014

Available 9:00 AM — 6:00 PM IST. For urgent queries, use the phone option.

Email

info@indianfencemachine.com

We typically respond within 24 hours.

Location

Udaipur, Rajasthan

— Pan-India delivery & installation

Send Inquiry

Frequently Asked Questions

Double Wire Chain Link Fencing Machine

What is a double wire chain link fencing machine?

A double wire chain link fencing machine is an advanced variant of the standard chain link fencing machine that simultaneously feeds and weaves two wires through twin drive systems — producing chain link mesh at nearly twice the speed of a single-wire machine. The output mesh is identical in quality and pattern to single-wire production, but the throughput per hour is significantly higher, making it ideal for high-volume fence manufacturers and export-oriented production units.

What is the production capacity of a double wire chain link fencing machine?

The Chetak 2026 double wire chain link fencing machine produces approximately 300–350 kg of chain link mesh per hour depending on wire gauge and mesh size. In a standard two-shift operation, this translates to 4–4.5 tonnes of finished fence mesh per day — roughly double the output of a comparable single-wire fully automatic machine running in the same space.

What is the price of a double wire chain link fencing machine in India?

Double wire chain link fencing machine prices in India typically range from ₹11 lakh to ₹16 lakh depending on the manufacturer, components, and included accessories. Indian Fence Machine offers factory-direct pricing on the Chetak 2026 — with no dealer margin added. Contact us for a current price quote based on your specific wire gauge requirements and installation location.

How much space does a double wire chain link fencing machine require?

The Chetak 2026 requires a working area of 24 × 20 ft (approximately 480 sq ft). This includes space for the weaving heads, wire payoff stands, and roll collection. The vertical dual-stand design keeps the machine footprint compact relative to its production output — making it practical even for manufacturers with existing factory layouts.

What wire types and mesh sizes does the Chetak 2026 support?

The Chetak 2026 double wire chain link fencing machine runs GI (galvanised iron) wire and PVC-coated wire in diameters from 2.0 mm to 4.0 mm, including commercial quality Raipur wire. Mesh opening sizes range from 35 mm to 110 mm using the 8 interchangeable dies supplied with the machine. Custom mesh sizes are available with additional tooling.

How many operators does a double wire chain link fencing machine need?

The Chetak 2026 is designed for single-operator use. The fully remote control system, auto-roll mechanism, and PLC-controlled wire feed mean that one trained operator manages the complete production cycle — wire loading, weaving, rolling, and cutting — without assistance. Indian Fence Machine provides hands-on operator training at your site as part of every machine delivery.

What is the difference between a double wire and a fully automatic single wire chain link fencing machine?

A fully automatic single wire machine runs one wire feed at a time through a single servo-driven weaving head. A double wire machine runs two wire feeds simultaneously through twin servo heads — producing mesh at nearly double the rate in the same time. The double wire machine costs more upfront but delivers a lower cost-per-kg of production over time because of the higher throughput. For operations producing more than 1.5 tonnes per shift, the double wire machine typically offers a faster return on investment.

Does the Chetak 2026 include installation and after-sales support?

Yes. Every Chetak 2026 purchase includes on-site installation by an Indian Fence Machine technician, complete operator training, and 24×7 after-sales support. Spare parts — including the standby relay, sensors, and SSR components shipped with every machine — are available directly from our Udaipur facility with fast dispatch to all Indian states.
